Die for automotive

Extruded material: Aluminium alloy 6060
Dimension: porthole Ø 530 mm
Cavities: 1 cavity for P32MN press
Profile's features: essential wall-thickness tolerance and special attention to the wheelbase between the cores
Design: because of the big dimension of the profile, it is necessary a feeder-plate
Features: to ease the manufacture and the maintenance of the mandrel, it was divided into two parts

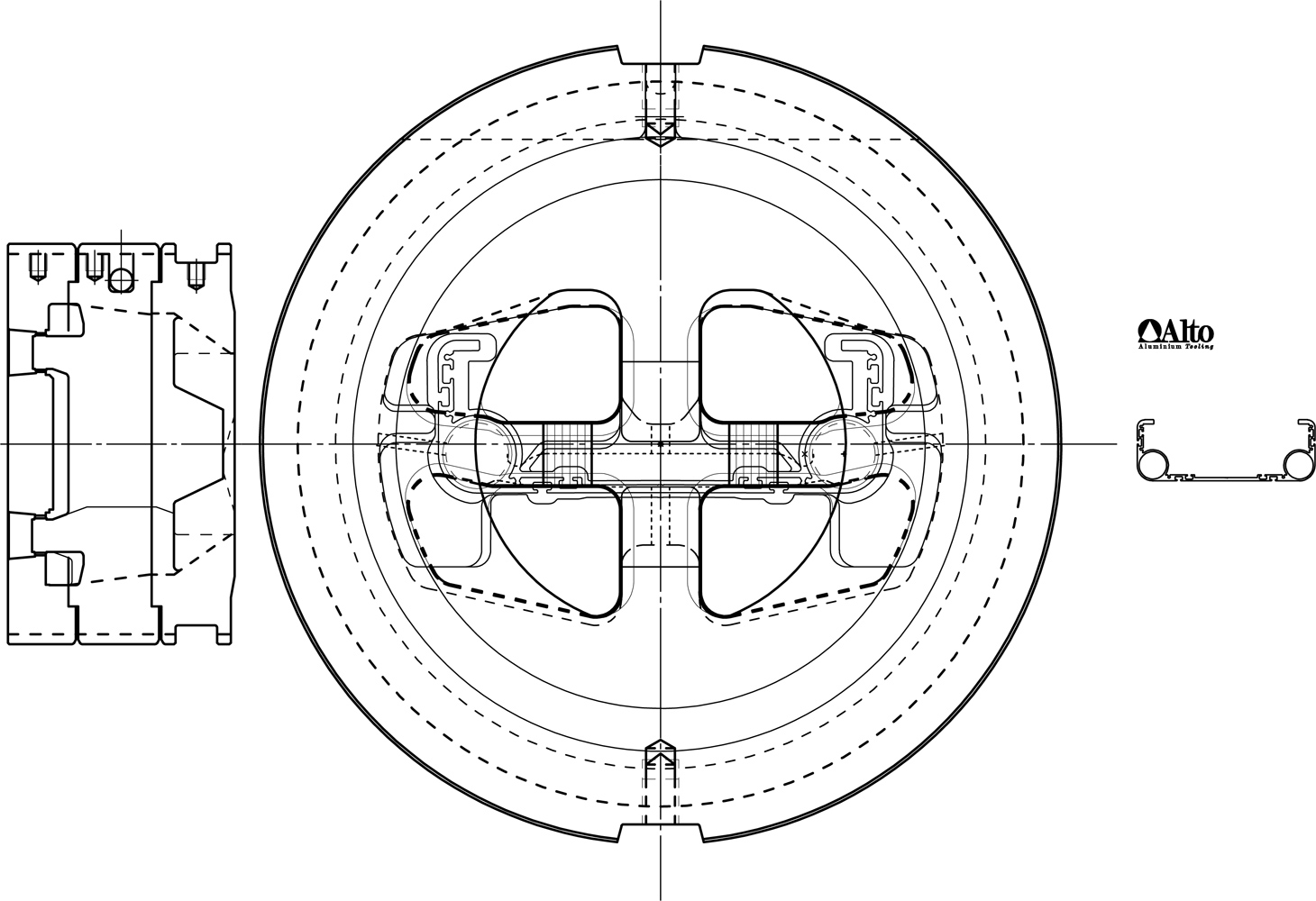

Die for automotive - Techinical design
Techinical design
