Die for standard hole profile - 01

Extruded material: Aluminium alloy 6063
Dimension: porthole Ø 310 mm
Cavities: 1 cavity for P48MN press
Profile's features: profile needs good mechanical and structural properties
Design: pyramidal design
Features: to improve the profile surface quality, the die is requested with nitrogen channel
Die for standard hole profile 01 - Die
Die
Die for standard hole profile 01 - Mandrel
Mandrel

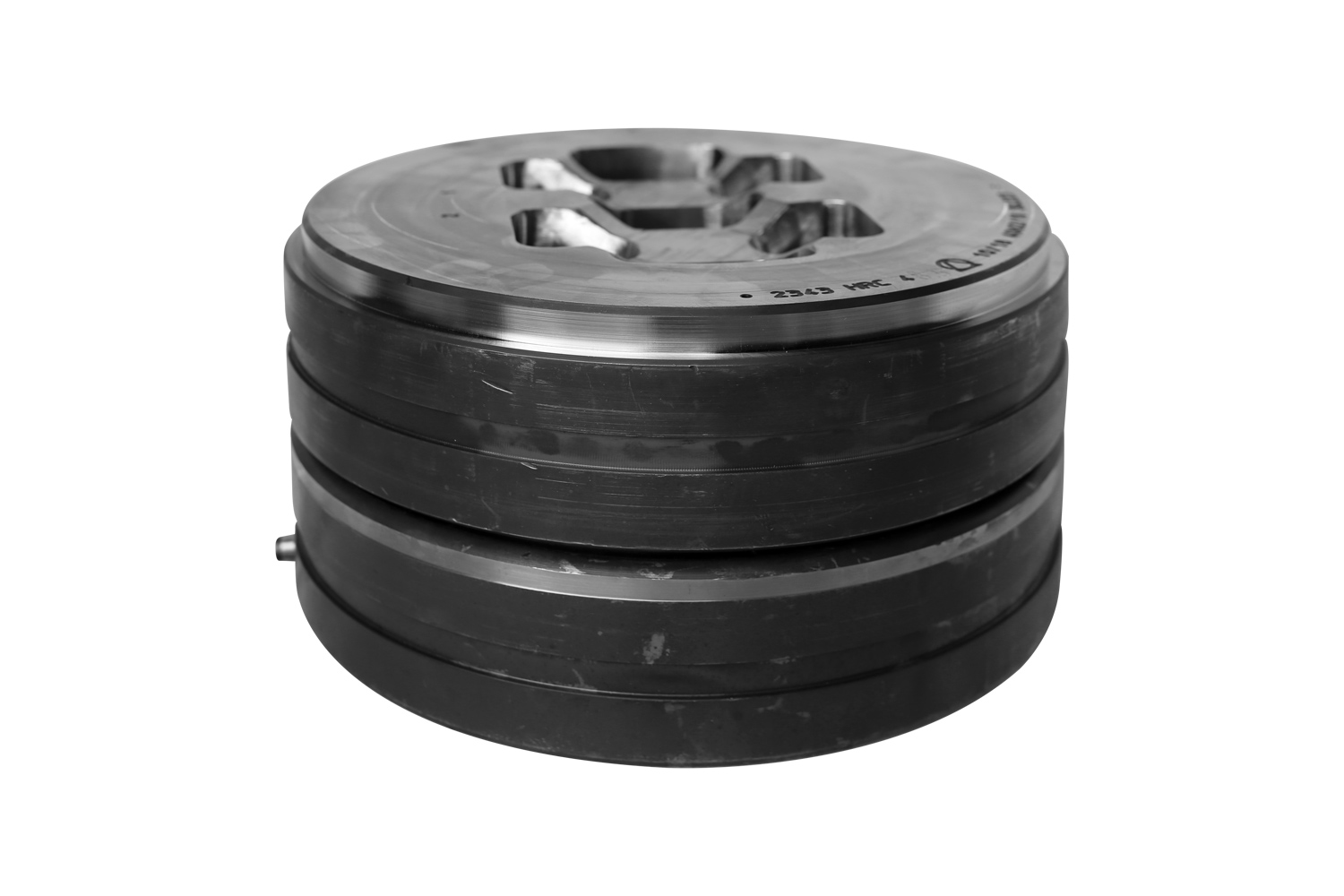

Die for standard hole profile 01 - Assembled
Assembled
Die for standard hole profile 01 - Techinical design
Techinical design
Matrice per profili standard tubolari - 02
Extruded material: Aluminium alloy 6060
Dimension: porthole Ø 310 mm
Cavities: 2 cavities for P28MN press
Profile's features: thin wall-thickness
Design: pyramidal design
Features: shared ports to optimize the use of the maximal feeding
